Softing WX_AD_SM2 單模光纖測試儀WX4500(原賽博Psiber）
- WireXpert's singlemode fiber adapters offer unmatched performance in certification testing of premise fiber optic cabling.
1、乐鱼棋牌mac更新 20年測試儀器儀表行業經驗；
2、100%原裝正品保證，承諾假一罰十；
3、8分鍾報價，價格行業優惠，現貨即發；
4、免費保修，免費培訓，全天24小時技術支持；
- 谘詢熱線：13798421872
-
產品詳情
技術規格
型號和配件
文檔與軟件
更多信息
聯係我們
Single Mode Adapter

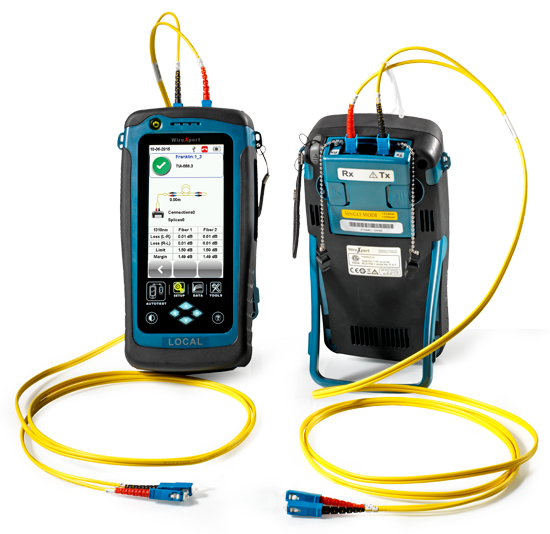

Fast and Intuitive Fiber Certification WireXpert Optical Loss Test Kit
WireXpert's singlemode fiber adapters offer unmatched performance in certification testing of premise fiber optic cabling. In addition to 6-second dual ended, dual wavelength certification testing, WireXpert provides intuitive graphical work-flow for bi-directional testing.
WireXpert makes the task of selection of set-reference method and test configuration straigth-forward with the advantage of easy to follow pictorial steps.
Single Mode Adapter
Why Single Mode Adapter?
Improve productivity of technicians with easy and fast configuration and testing
Test single fiber links, troubleshoot with light source and power meter tools
Pictorial work-flow makes it easy to avoid human errors in testing
Single Mode Adapter
Features
| Fast, 6-seconds autotest performs dual wavelength certification testing |
| Intuitive selection of test configuration and reference setting |
| Allows 1,2, or 3-jumper referencing |
| Seamless reporting in ReportXpert software with copper test results |
| Automated standards based label creation |
| Light source and power meter functions converts WireXpert into two independent instruments |
| Allows certification single fiber links in addition to duplex links |
| Allows loopback testing independantly using WireXpert Local or Remote units, doubling the test capacity |
Single Mode Adapter
Physical characteristics
| Connector Type | SC (LC with optional kit) |
| Wavelengths | 1310/1550 nm |
| Dynamic Range | 31 dB |
| Length range | 1.5 m -10,000 m |
| Length Resolution | 1.5m |
| Output Power | -5 dBm to -8 dBm @1550 nm -7 dBm to -9 dBm @ 1310 nm |
| Peak Wavelength | 1300 nm to 1315 nm @1310 nm 1535 nm to 1560 nm @1550 nm |
| Receiver Sensitivity | -40 dBm |
Single Mode Adapter
Delivery
WX_AD_SM2
Set of two singlemode adapters
Two pairs of singlemode reference cords
SC-SC duplex adapter singlemode
Cleaning kit
Optional one-jumper singlemode LC Kit:
WX_AC_LC_SM_KIT
SC-LC Simplex Test Kabel (1 pair)
SC-LC Test Adapter (1 pair)
LC-LC Simplex Referenz Kabel (1 pair)
訂購：Softing WX_AD_SM2 單模光纖測試儀WX4500(原賽博Psiber）
